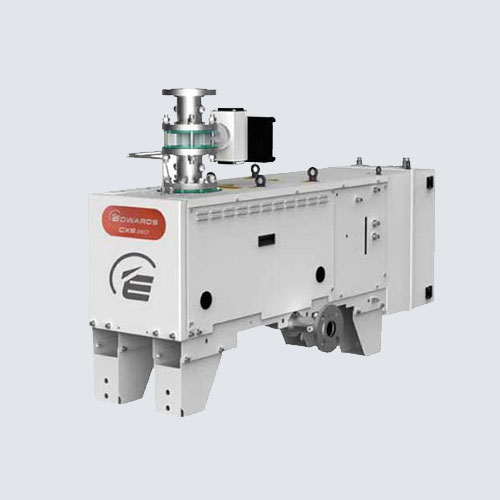

CXS is Edwards most advanced chemical dry pump featuring new tapered-screw technology for exceptional energy efficiency and performance. CXS offers high reliability and effluent-free pumping even in the most difficult of harsh chemical and pharmaceutical processing applications. Featuring corrosion-free operation and robust liquid and solids handling, the CXS is capable of continuously pumping up to one liter of liquid per minute continuously or up to 25 liter-slugs without stopping, and provides an ultimate vacuum down t 10-2 mbar. CXS is available in two sizes, with capacities of 160 m3h-1 and 250 m3h-1.

With up to 5 years between services, no routine maintenance and a minimum 25-year design life, the CXS combines high reliability with the lowest cost of ownership of any dry pump. The very latest in chemical pump technology design, the CXS features a new discrete, tapered variable pitch screw mechanism for improved thermal management and optimised pumping performance. Additionally, the pump's onboard controller provides low-cost pump controls for a wide range of vacuum duties.

Download Brouchers

Customer Benefits

A. Simple: – Easy Installation & Integration with Existing Systems
B. Robust & Reliable: – Cutting Edge Screw Technology for Corrosion-Free Operation & Robust Liquid & Solids Handling During Process Upsets
C. Environmentally Friendly: – Quiet Running, No Effluent Generation & Low Utilities Consumption
C. Low Cost of Ownership: – Best In Class Installation & Running Costs
